For example you could say the following in text : router A connects
to router B and D, the cost from A to B is 2, and the cost from A to
D is 4. Router B connects to router C. The cost to router A is 6,
and the cost to router C is 10. Router C connects to router D. The
cost to router B is 9 and the cost to router D is 8. The cost from
router D to router A is 16 and the cost to router A is 99.

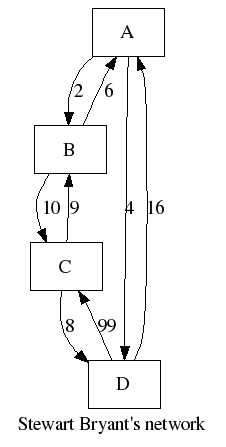

Here is the Graphviz code, to compare (I also attached the
automatically produced PNG but Graphviz can make PDF or SVG as well):
// See http://www1.ietf.org/mail-archive/web/ietf/current/msg39858.html
digraph bryantnetwork {
label = "Stewart Bryant's network";
// Routers
node [shape=box, fontsize=15];
// Links
edge [len=2.0];
A -> B [label="2"];
A -> D [label="4"];
B -> A [label="6"];
B -> C [label="10"];
C -> B [label="9"];
C -> D [label="8"];
D -> A [label="16"];
D -> C [label="99"];
}
Description: PNG image
